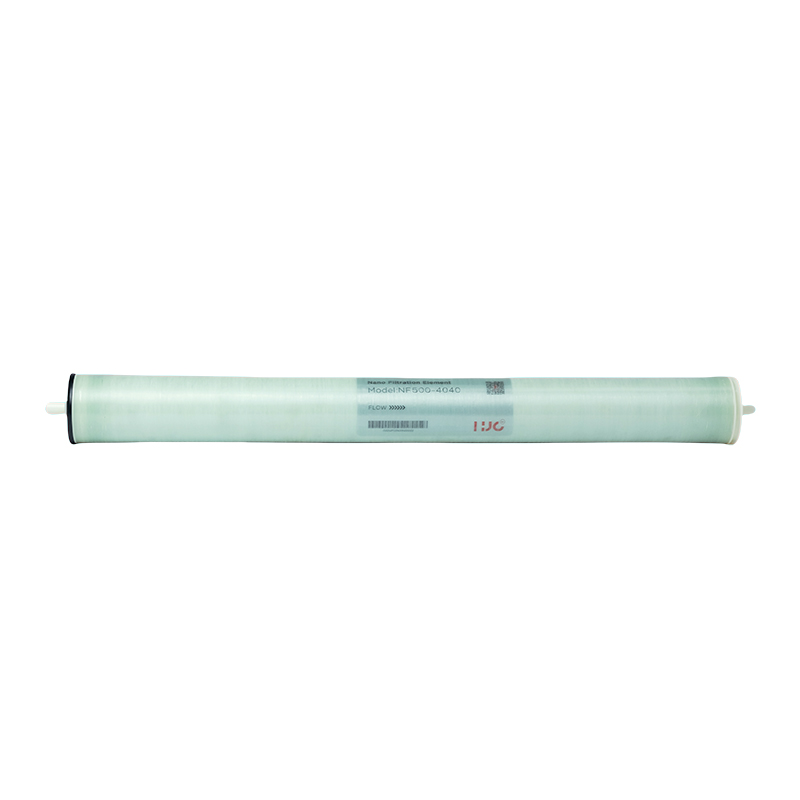

Configuration: Spiral Wound Membrane Polymer: Composite Polyamide Membrane Active Area: 1.092m2

Maximum Applied Pressure: 300PSI(2.06MPa) Maximum Chlorine Concentration: <

0.1 PPM Maximum Operating Temperature: 113° F ( 45°c) PH Range, Continuous (Cleaning): 2-12(3-10) Maximum Feed Water TDS: 4,500ppm Maximum Feed Silt Density Index: SDI 5

The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions: 200 mg/L NaCl solution 60 psi (0.41 MPa) Applied Pressure 77 F (25 c)Operating Temperature 15% Permeate Recovery 6.5-7.0 pH Range
